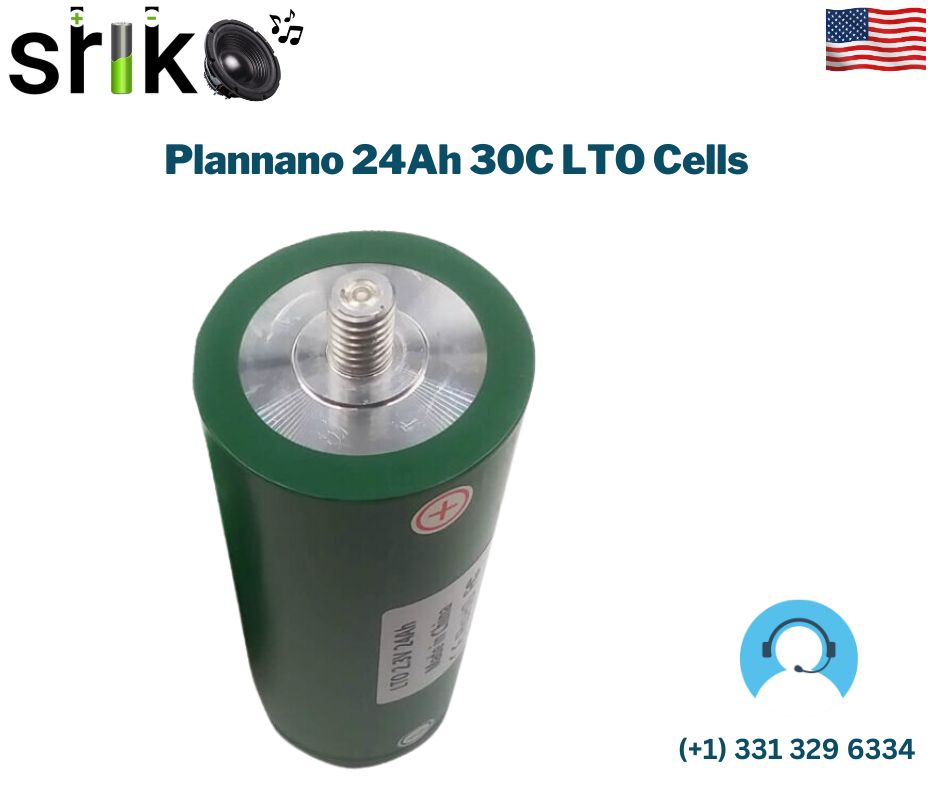

Plannano 24Ah 30C LTO Cells

$47.83

The Plannano 24Ah 30C LTO Cells is lithium titanate (LTO) cells for building your own car audio or DIY battery pack.

46 in stock

Description

Plannano 24Ah 30C LTO Cells

Plannano

Items Specifications
Nominal Capacity 24Ah
Nominal Voltage 2.3V
Charge cut-off voltage 2.7V
Cycles @25°C  @1C 20000 Cycles
Terminal type m12    1.75
Max Constant Charging Current 10C
Max Constant Discharging Current 15C
Max Charging Current 20C
Max Discharging Current 30C
Work temperature -40°C ~ 60°C
Internal Impedance ≤20mΩ
Dimensions 64 * 64 * 180 mm
Weight 30 Ounce

About the Plannano 24Ah 30C LTO Cells

The Plannano 24Ah 30C LTO Cells is lithium titanate (LTO) cells for building your own car audio or DIY battery pack. Our team can help you match it to your system.

Building a pack with LTO cells

  • LTO car audio packs typically use six cells in series (6S)
  • Add parallel groups for more capacity and current
  • Use matched bus bars and an active balancer

Follow our step-by-step guide to building a DIY lithium car audio battery pack, and browse bus bars and balancers. Questions? Contact SRIKO Audio.

Additional information

Weight 33.3 oz
Dimensions 8 × 6 × 6 in
