Description

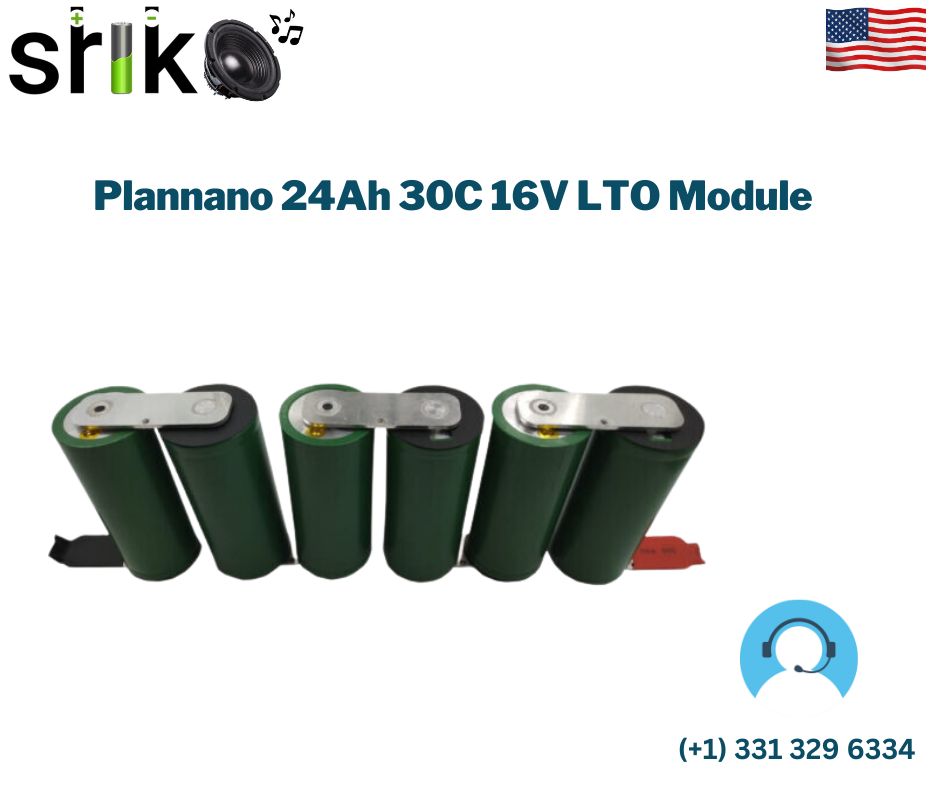

Plannano 24Ah 30C 16V LTO Module.
Plannano Module
Each cell specifications :
| Condition | UNITS |
|---|---|
| Cycle life (80%DOD): | 20000 Cycles |
| Shell Material: | Aluminium |
| Rated capacity: | 24Ah |
| Nominal Voltage | 2.3V |
| Charge Voltage: | 2.7V |
| Minimum capacity: | 24A |
| Amp Hours: | 24Ah |
| Chemical Composition: | LTO |
| Weight | 0.86kg |
| Discharging Temperature: | -40 deg C – 55 deg C |
| Dimensions(L*W*H): | 64*64*180±0.5mm |
| Shipping from | Chicago, USA |
| Max Continuous Discharge Current: | 720A |
| End-of-Discharge Voltage: | 1.5V |
Module dimensions : 15 In* 5.8In * 2.5In
Weight : 26.45 pounds
About the Plannano 24Ah 30C 16V LTO Module
The Plannano 24Ah 30C 16V LTO Module is lithium titanate (LTO) cells for building your own car audio or DIY battery pack. Our team can help you match it to your system.
Building a pack with LTO cells
- LTO car audio packs typically use six cells in series (6S)
- Add parallel groups for more capacity and current
- Use matched bus bars and an active balancer
Follow our step-by-step guide to building a DIY lithium car audio battery pack, and browse bus bars and balancers. Questions? Contact SRIKO Audio.
