Description

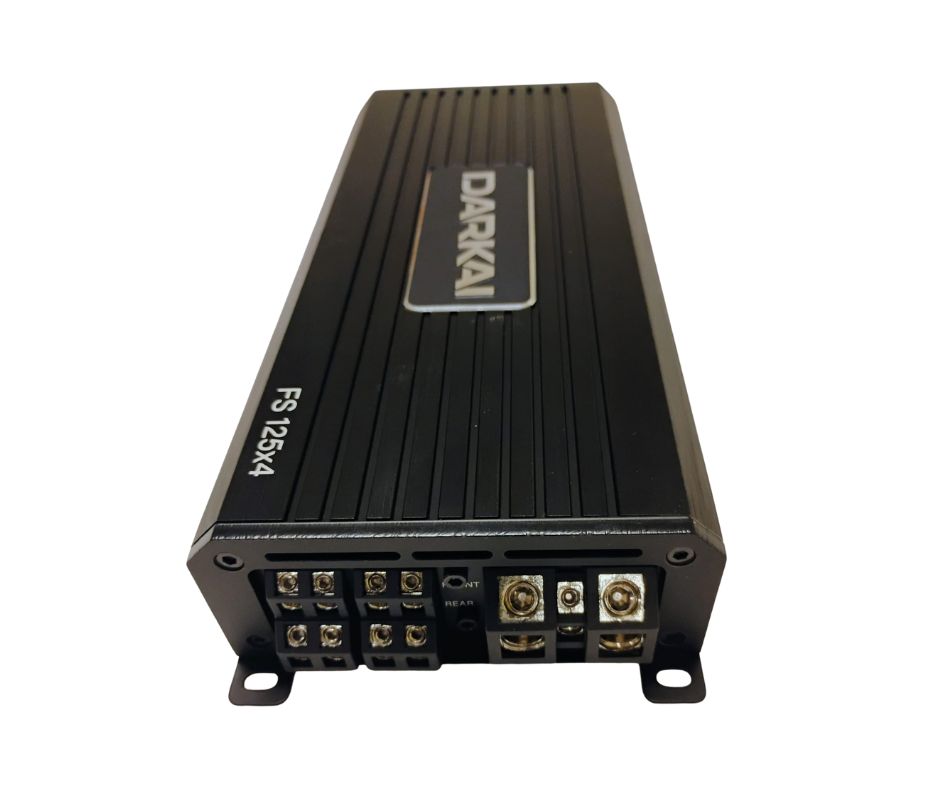

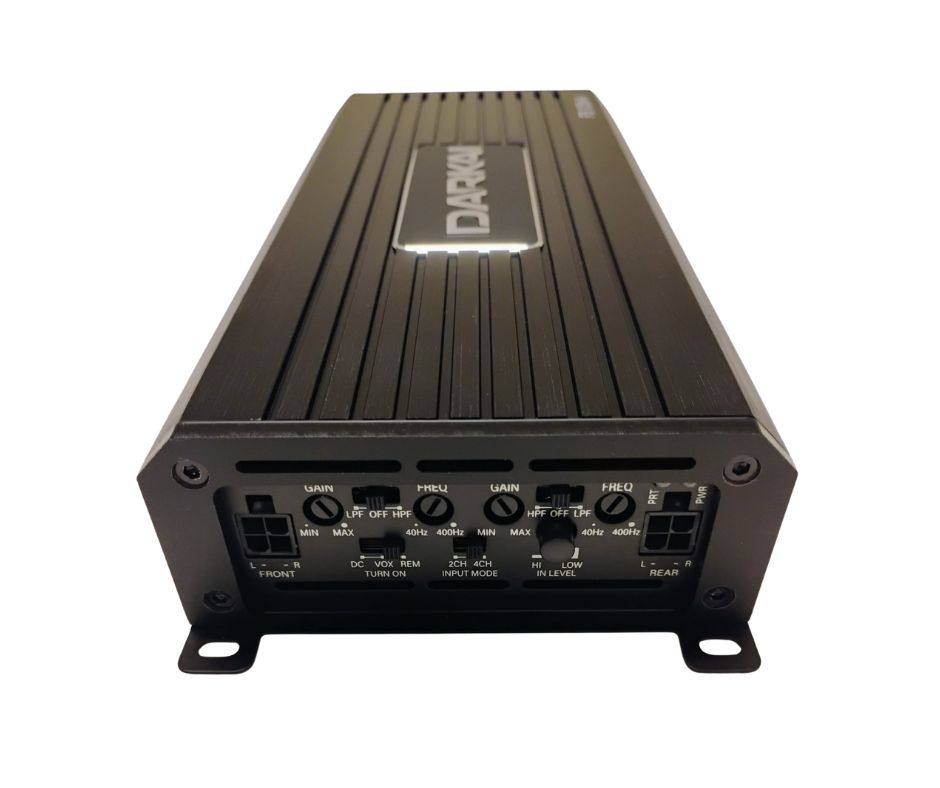

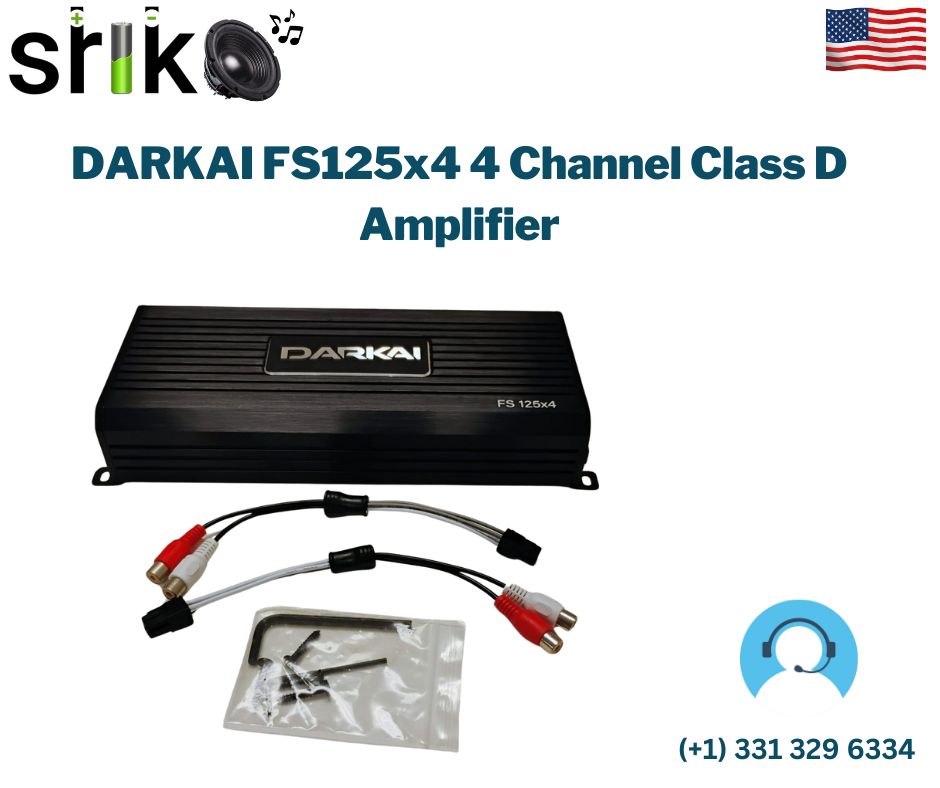

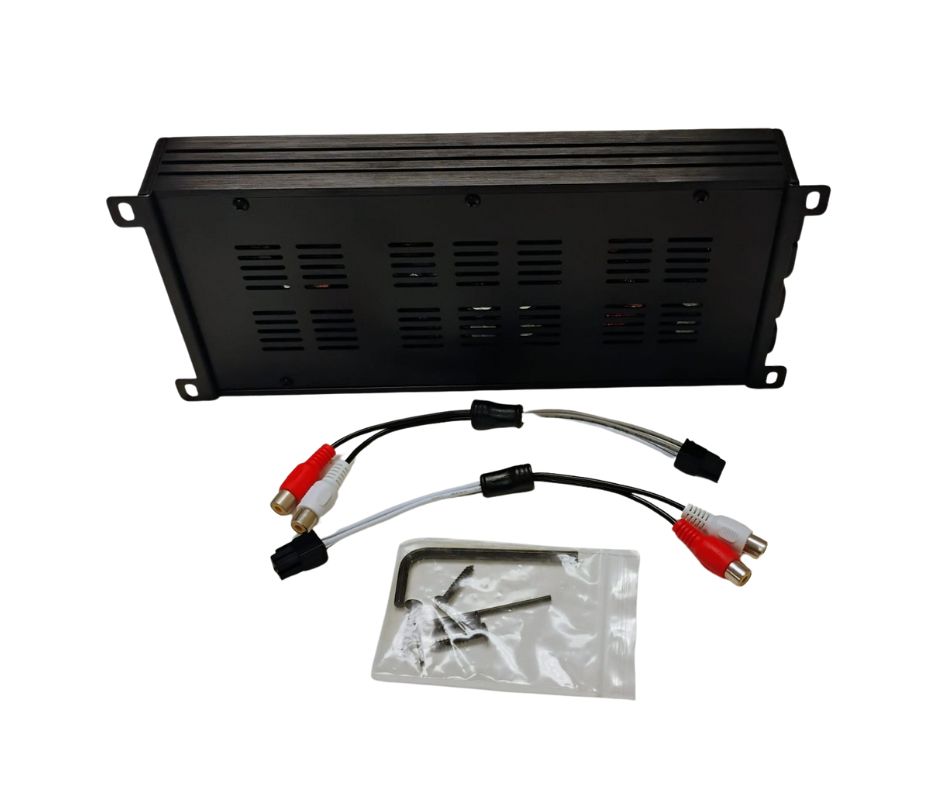

DARKAI FS125x4 4 Channel Class D Amplifier
DARKAI FS125 Amplifier
RMS Power Output Ratings at 14.4v THD+N=1%
125w x 4 at 4ohm
250w x 4 at 2ohm
500w x 2 at 4ohm bridged
Input Signal Voltage: 0.4-10v Low level / 2.1-29.5v High Level
3 way Power on switch, REM , High level and Audio “Vox”
HPF/LPF front and Rear 12db adjustable from 40hz-400hz
Frequency Response 0-3db <1%THD : 22hz-35khz
Signal to noise ratio 87.5db
protection : Short , thermal , over/under voltage
Measurements: 4.25″/108mm x 10″/255mm x 1.875″/48mm
Fuse suggested 100Amp
Weight: 1.5 kg
Dimensions: 10 * 4.5 * 2 In
About the DARKAI FS125x4 4 Channel Class D Amplifier
The DARKAI FS125x4 4 Channel Class D Amplifier is a car audio amplifier from Dark Audio / DARKAI. Our team can help you match it to your system.
Getting the most from your amplifier
- Match the amplifier RMS power and impedance to your speakers or subwoofers
- Use correctly sized power and ground cable and an ANL fuse
- Power big systems with a lithium car audio battery to keep voltage stable
Learn how to choose a car subwoofer and read our car audio battery guide, or browse all amplifiers. Questions? Contact SRIKO Audio.
