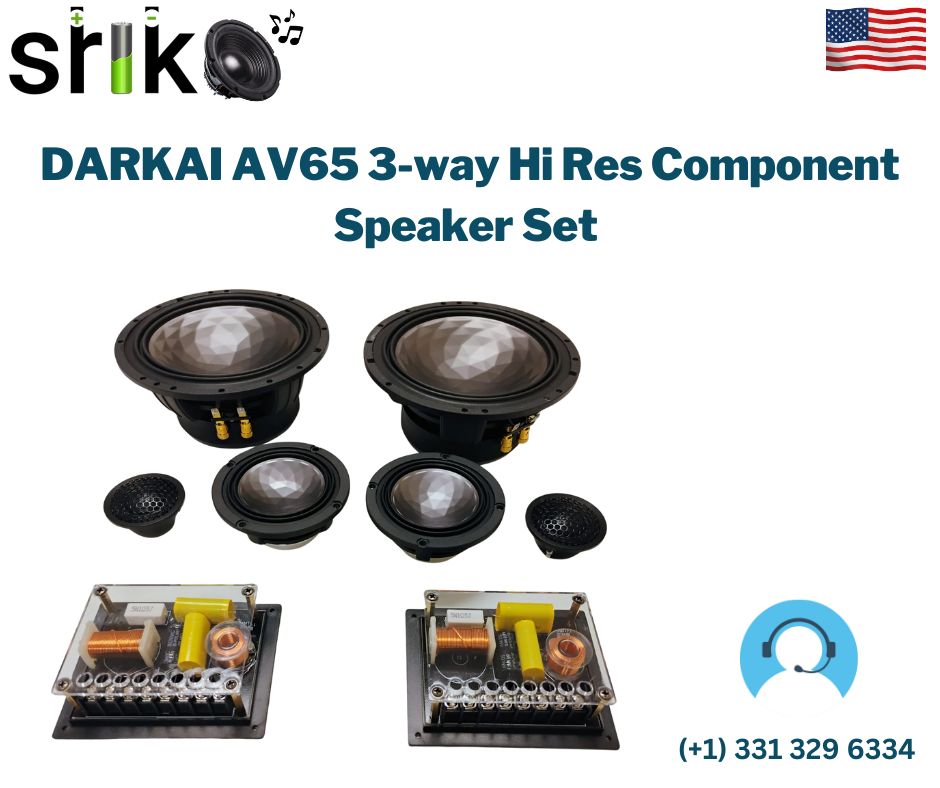

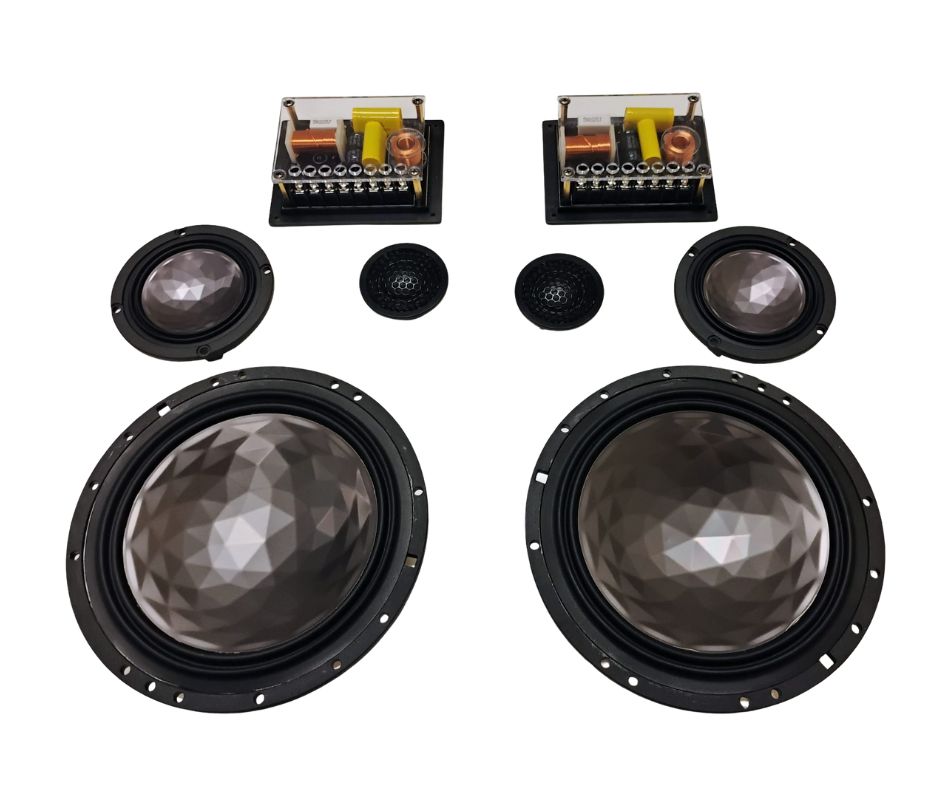

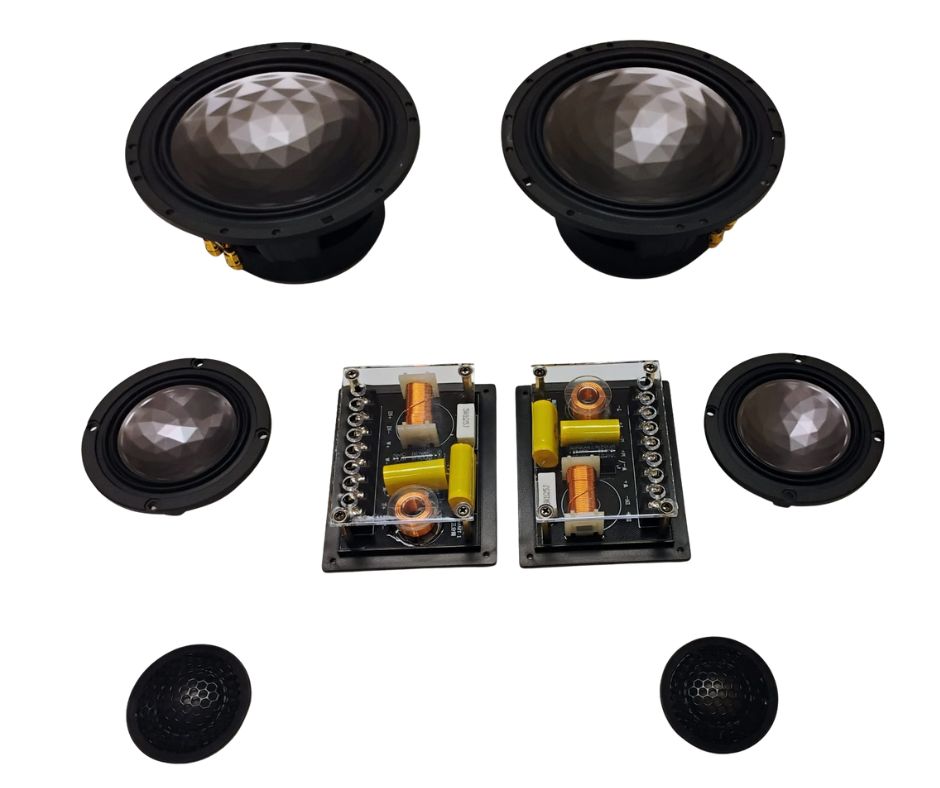

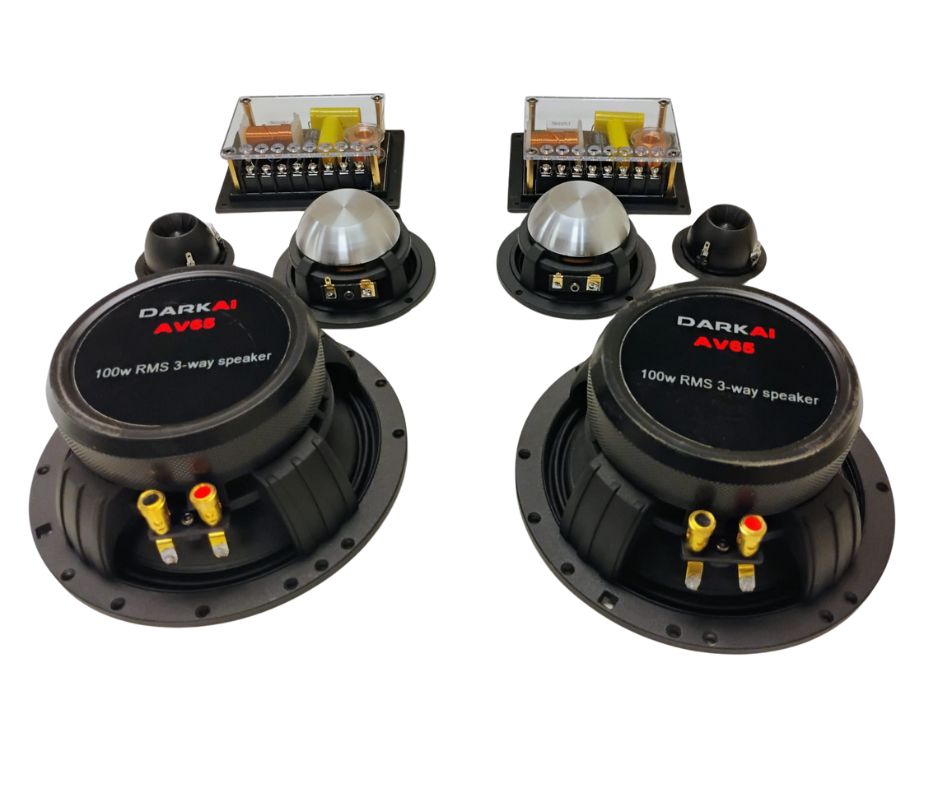

DARKAI AV65 3-way Hi Res Component Speaker Set

The cam series subwoofer is made for low frequency extension , it is a ground pounder and does extremely well at low frequency music

The AV series is geared towards SPL “sound pressure level” and higher frequencies and has advanced cooling capabilities with an aluminum dust cap which actively cools the subwoofer through the front , it also has an aluminum cooling ring between the frame and the motor.

The DKI series is made for low frequencies and is very musical with a higher power rating than the cam series it also combines the advanced cooling abilities of the AV series with the aluminum dust cap as well as being able to produce very good SPL “sound pressure level”, it’s a great all-around driver.

DARKAI AV65

Passive Crossover Setup Parameter
Watts: 100w RMS
Impedance: 4 Ohm
Sensitvity: 93DB 1w1m
Frequency Response: 45hz-25Khz

Active Setup Parameter
Mid-bass, 60W power

Impedence: 4 Ohm

Frequency range: 45-500Hz

Sensitivity: 89dB

Diameter: 165mm. 6 1/2″

Opening diameter: 149mm. 5 7/8″

Installation depth: 78mm. / 3″ inch

Midrange

Power: 20W

Impedance: 4 ohms

Frequency range: 500-5000Hz

Sensitivity: 92dB

Diameter: 92mm. 3 5/8″

Opening diameter: 73mm. 2 7/8″

Installation depth: 43mm. 1 11/16″.

Tweeter

Power: 20W

Impedance: 5.6 Ohms

Frequency range: 4000-25000 Hz

Sensitivity: 95dB

Diameter: 51mm. 2″

Opening diameter: 43mm. 1 11/16″

Installation depth: 20mm. 3/4″

Fuse Block:

Weight: 180 grams

Size: 4.5 * 3.5 * 1.2 In

Big Speakers:

Weight: 1.35 kg

Size: 6.5 In

Mid Speakers:

Weight: 210 grams

Size: 3.8 In

Small Speakers:

Weight: 60 grams

Size: 2.2 In
