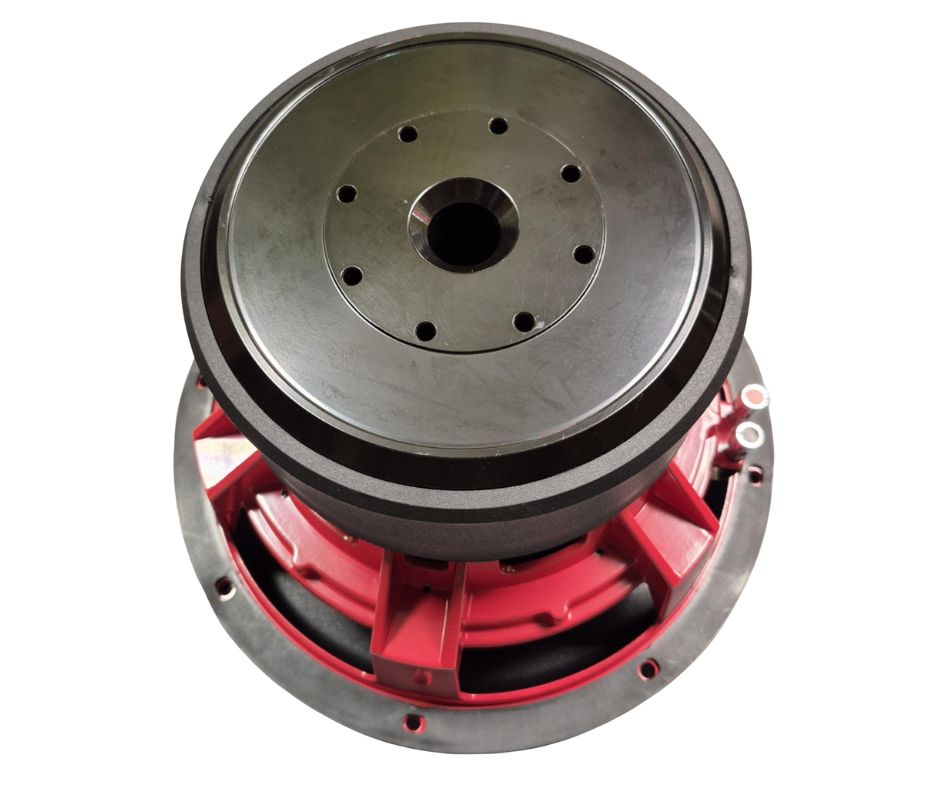

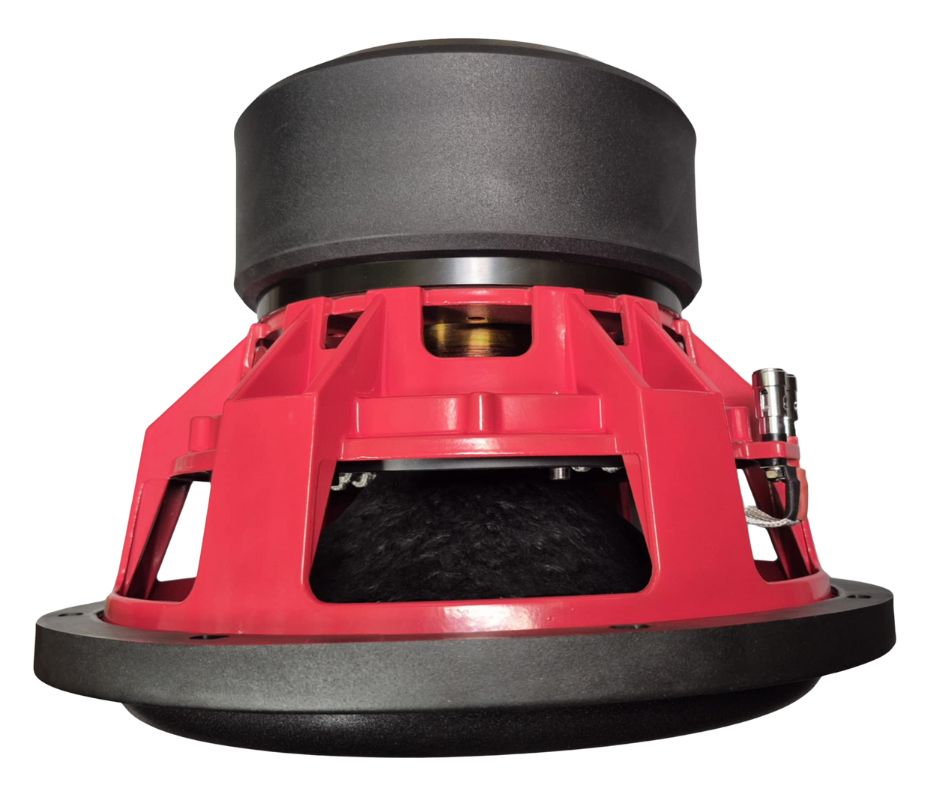

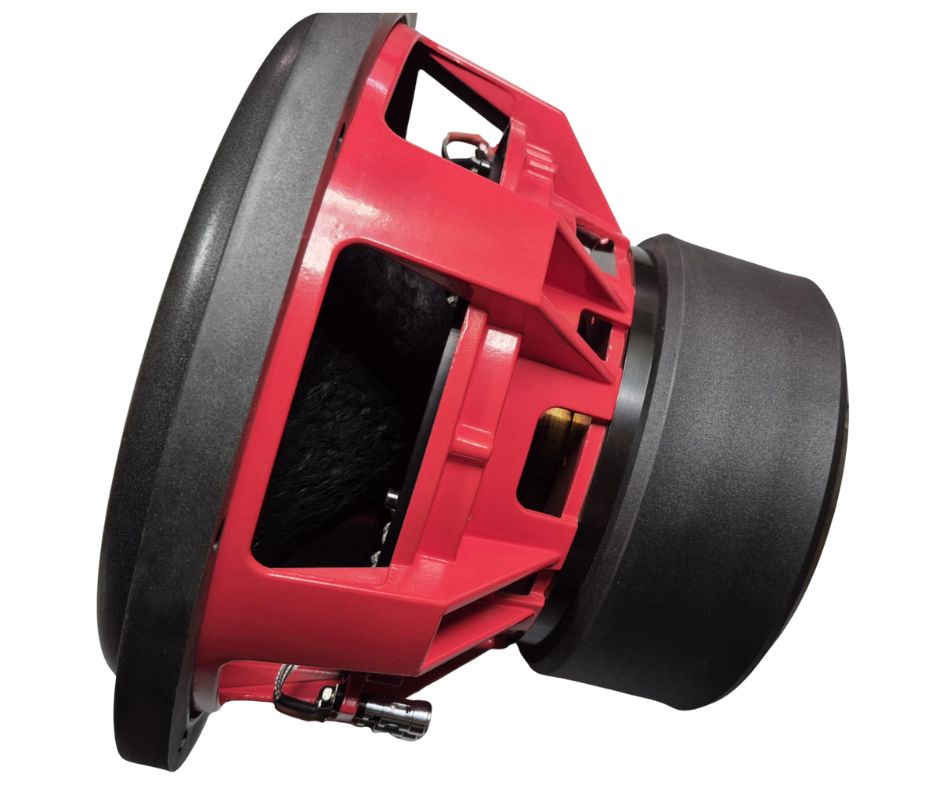

CAM 12″ 1200 Watts Dual 1 Ohm Subwoofer
(Dark Audio Industries , DARKAI)
The cam series subwoofer is made for low frequency extension , it is a ground pounder and does extremely well at low frequency music
The AV series is geared towards SPL “sound pressure level” and higher frequencies and has advanced cooling capabilities with an aluminum dust cap which actively cools the subwoofer through the front , it also has an aluminum cooling ring between the frame and the motor.
The DKI series is made for low frequencies and is very musical with a higher power rating than the cam series it also combines the advanced cooling abilities of the AV series with the aluminum dust cap as well as being able to produce very good SPL “sound pressure level”, it’s a great all-around driver.
Dual 1 Ohm Subwoofer
- 1200W RMS
- 3″ 4-layer Voice coil; black aluminum former
- Triple-stacked magnet; 228oz motor
- High Excursion wide foam surround
- 28mm Xmax
- 34hz Fs
| CAM-12″ | ||
| 1. | Rated Power (RMS) | 1200 Watts |
| 2. | Coil | 3″ 4 layer |
| 3. | Nominal Diameter | 12″ |
| 4. | Cutout Diameter | 11.35″ |
| 5. | Mounting Depth | 8.03″ |
| 6. | Recommended Ported | 1.8 – 2.1 cuft net 32Hz |
| 7. | Recommended Sealed | 0.8 – 1.2 cuft net |
| TS Parameters | ||
| 1. | FS | 34.66Hz |
| 2. | SPL | 80.76 |
| 3. | QMS | 6.76 |
| 4. | QES | 0.5575 |
| 5. | QTS | 0.515 |
| 6. | BL | 26.6 |
| 7. | MMS | 483.8 g |
| 8. | Vas | 0.3642 cuft |
| 9. | XMax | 28mm |
| 10. | Weight | 37.4lbs |
