Description

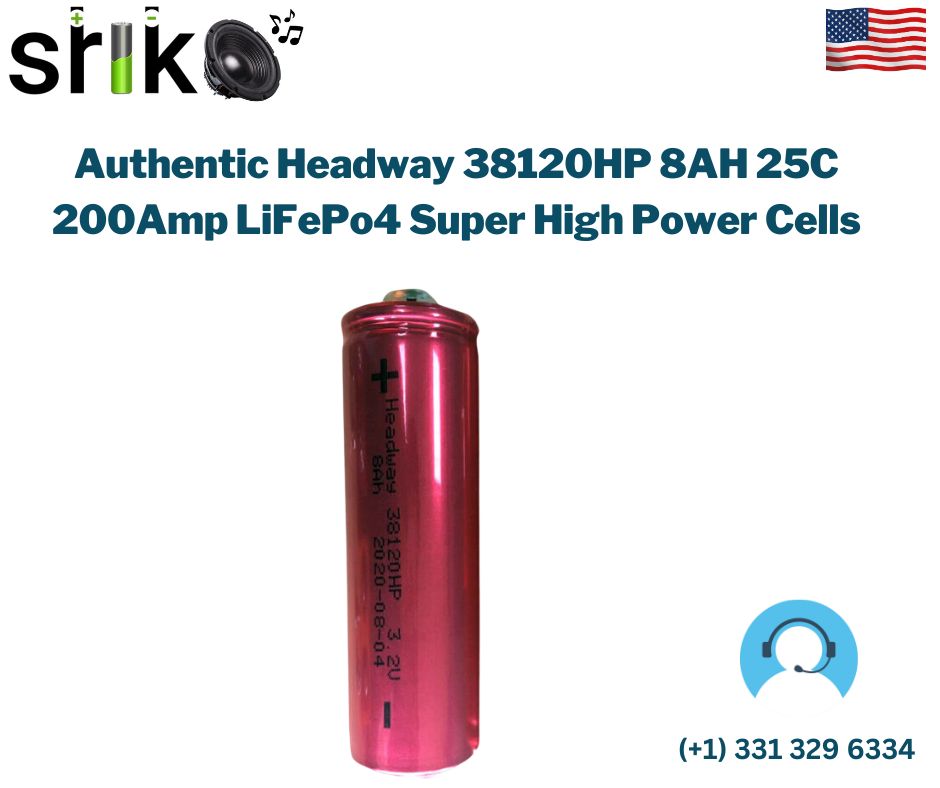

Authentic Headway 38120HP 8AH 25C 200Amp LiFePo4 Super High Power Cells.
Headway
Condition: New
Type: Lifepo4
Brand: Headway
| Nominal Voltage | 3.2V |
| Nominal Capacity | 8000 mAh |
| Internal impendance | ≤ 4mΩ |
| Discharge cut-off voltage | 2.5V |
| Max charge voltage | 3.65V |
| Standard charge current | 3C 24A |
| Max charge current | 10C 80A |
| Standard discharge current | 5C 40A |
| Max continuous discharge current | 15C 120A |
| Max pulse discharge current | 30C 240A |
| Weight | 350g approx |
| Max. dimension | Max. Diameter: 38.5mm, Height: 136mm |
| Operating temperature | charge: 0°C ~ 60°C, Discharge: -20°C ~ 75°C |
| Storage temperature | 0°C ~ 45°C |
| Data Sheet | Specifications-Of-Headway-Cells |
About the Authentic Headway 38120HP 8AH 25C 200Amp LiFePo4 Super High Power Cells
The Authentic Headway 38120HP 8AH 25C 200Amp LiFePo4 Super High Power Cells is LiFePO4 (LFP) cells for building your own 12V car audio or DIY lithium battery pack. Our team can help you match it to your system.
Building a pack with LiFePO4 cells
- Four cells in series (4S) make a 12.8V nominal pack
- Add parallel groups for more capacity
- Use matched bus bars and an active balancer
See our guide to building a DIY lithium car audio battery pack, or browse ready-made LiFePO4 kits. Questions? Contact SRIKO Audio.
